Shingle Roof, Gutter, Plywood and Chimney Installation in Bronx
RH Renovation NYC completed a complex exterior rehabilitation featuring a shingle roof replacement, structural plywood installation, precision chimney masonry reconstruction/flashing, and custom seamless gutter integration for a residential property located in the Bronx, NY. Urban homes across New York’s boroughs endure severe environmental challenges, including heavy winter nor’easters, driving coastal rain, high wind-shear, and the destructive freeze-thaw cycles that routinely fracture aging masonry mortar joints and compromise roof-to-chimney transition zones.
Over time, water infiltration around deteriorating chimneys and neglected roof decks leads to severe timber rot and active interior leaks. This project was engineered to provide a top-down structural restoration—securing the roof’s load-bearing deck, rebuilding vulnerable chimney infrastructure, and deploying a high-performance water-shedding and drainage network.
Comprehensive Scope of Work & Masonry-Roof Integration
To achieve absolute weather-tight security, structural stability, and rigorous compliance with New York City building codes, our licensed and insured Bronx exterior specialists executed a meticulous, multi-phase installation protocol:

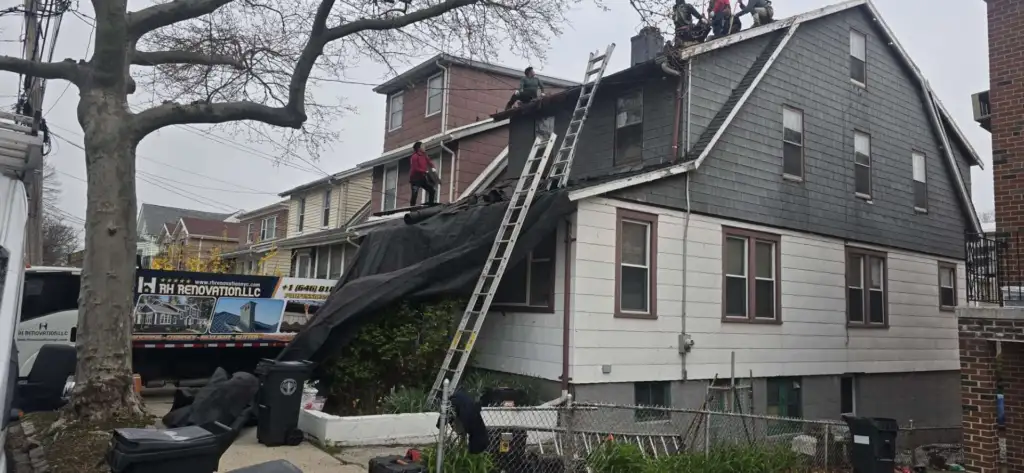

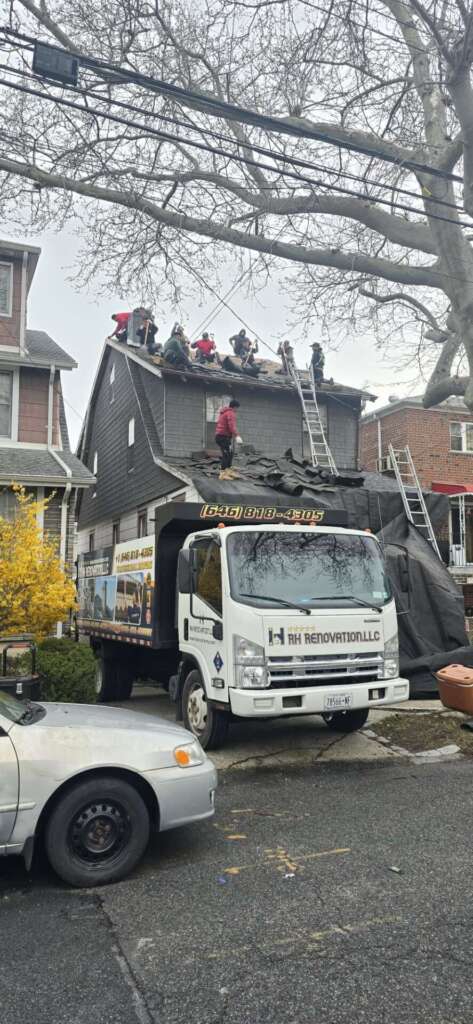

Complete Roof Tear-Off & Structural Plywood Remediation: All legacy shingle layers were stripped down to the bare framing members. Technicians conducted a thorough inspection of the roof deck, cutting out and replacing rotted, sagging, or water-damaged plywood panels with high-grade, thick structural sheathing to establish a rigid, code-compliant nailing base.
Chimney Masonry Reconstruction & Waterproofing: The deteriorating chimney stack was expertly addressed. Technicians ground out damaged mortar joints (repointing), replaced spalling bricks where necessary, poured a solid new concrete crown with a proper overhang, and installed a heavy-duty stainless steel flue cap to protect the interior cavity from water intrusion and animal nesting.
Custom Counter-Flashing & Step Flashing Integration: To eliminate the industry’s most common leak vector, we installed interlocking copper or corrosion-resistant step flashing counter-flashed directly into reglets cut into the chimney masonry, sealed with premium polyurethane exterior grade elastomeric sealant.
Secondary Weatherproofing & Ice-and-Water Shield: A heavy-duty synthetic underlayment was rolled out across the entire deck, supplemented by specialized self-adhering ice-and-water shield membranes along eaves, rakes, valleys, and extensively around the newly flashed chimney base to block wind-driven rain and winter ice dams.
Architectural Shingle Application: Premium dimensional asphalt shingles were meticulously fastened using enhanced nailing patterns to provide superior wind-uplift resistance and deliver a rich, multi-dimensional architectural finish.
Custom Seamless Gutter & Downspout Network: A high-capacity aluminum seamless gutter system was custom-measured, fabricated, and secured to the perimeter. Paired with correctly pitched downspouts, the system safely channels heavy roof runoff far away from the foundation to prevent soil erosion and basement seepage.
Final Quality Assurance & Compliance Audit: A rigorous multi-point inspection verified that all roofing, masonry, flashing, and drainage details met strict municipal building codes and manufacturer warranty specifications, followed by a thorough magnetic nail sweep and complete site cleanup.
Project Highlights & Technical Specifications
Service Category: Shingle Roof Replacement, Plywood Decking, Chimney Reconstruction & Seamless Gutters
Project Location: The Bronx, New York, NY
Core Materials Used: Structural plywood sheathing, architectural dimensional asphalt shingles, masonry mortar/bricks, custom concrete chimney crown, stainless steel flue cap, corrosion-resistant step/counter-flashing, and seamless aluminum gutters.
Key Engineering Focus: Roof-to-chimney moisture mitigation, masonry freeze-thaw protection, structural deck load stabilization, and hydrostatic drainage efficiency.
Results & Homeowner Value
By synchronizing the structural roof deck replacement, comprehensive chimney masonry restoration, and modern drainage installation into a single coordinated project, RH Renovation NYC eliminated deep-seated vulnerabilities at the home’s most critical high-risk zones. The Bronx homeowners now enjoy absolute defense against severe seasonal New York storms, restored structural integrity, and enhanced long-term property equity.
